Atlas Platinum RJ7000 ALI Certified 7,000 lb. Capacity Rolling Jack
$ 1209
$ 1727
Description
The Atlas® Platinum RJ7000 Air/Hydraulic Rolling Jack is designed for use with four-post lifts and features telescoping arms that extend across the lift runways. The lift pads located at the ends of these arms can be positioned precisely under vehicle lifting points situated above the runways.
This model includes expandable rail supports that adjust to fit a wide range of four-post above-ground lifts. The supports feature a smooth-rolling system, allowing the jack to glide effortlessly beneath the vehicle for easy positioning anywhere along the runway.
The Atlas® Platinum RJ7000 is an ALI Certified accessory, specifically recommended for use with the Atlas® Platinum PVL14 and Platinum PVL14OF-EXT 4-post lifts.
Important: This unit is designed to operate on air pressure between 70–115 PSI. Exceeding 115 PSI may result in equipment damage.
Key Features
ALI Certified Accessory (recommended for Platinum PVL14 & Platinum PVL14OF-EXT lifts)
7,000 lb. lifting capacity

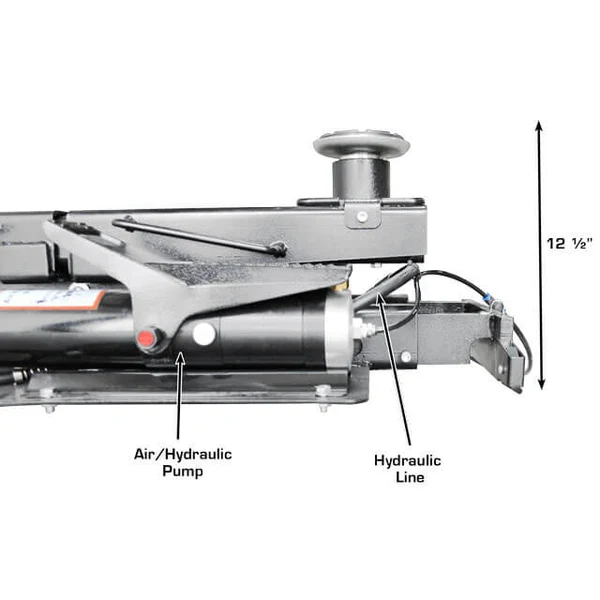

Air/hydraulic operation for smooth performance

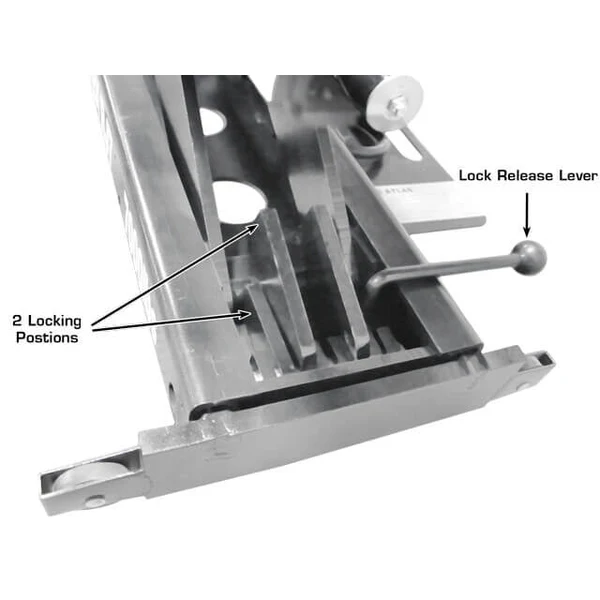

Two safety lock positions for added stability
Includes double screw-up adapters
Compact, low-profile design

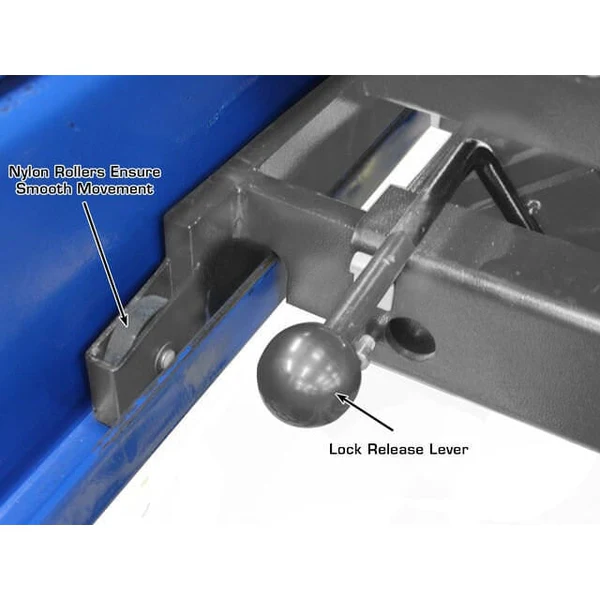

Smooth rolling action for easy positioning
Scissor mechanism ensures level lifting
Durable powder-coated finish
1-Year Parts-Only Warranty
Specifications
SpecificationDetail
| Maximum Capacity | 7,000 lbs |
| Maximum Width | 45 ½″ (3′ 9 ½″) |
| Minimum Width | 36″ (3′) |
| Distance Between Runway Capability | 36″ – 45″ |

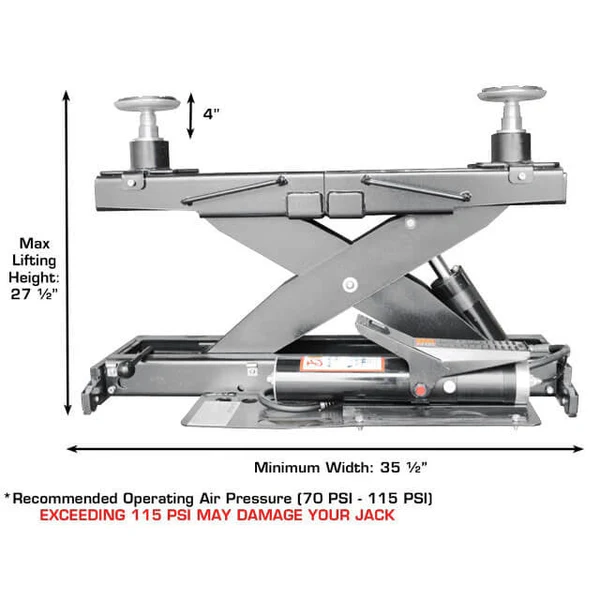

| Maximum Lifting Height (with Adapters) | 27 ½″ (2′ 3 ½″) |
| Air Requirement | 70–115 PSI |

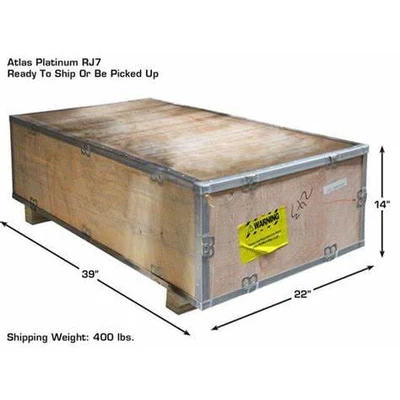

| Shipping Weight | 400 lbs |
| Double Screw-Up Adapter Pad Range | 1 ½″ – 4″ |
