Description

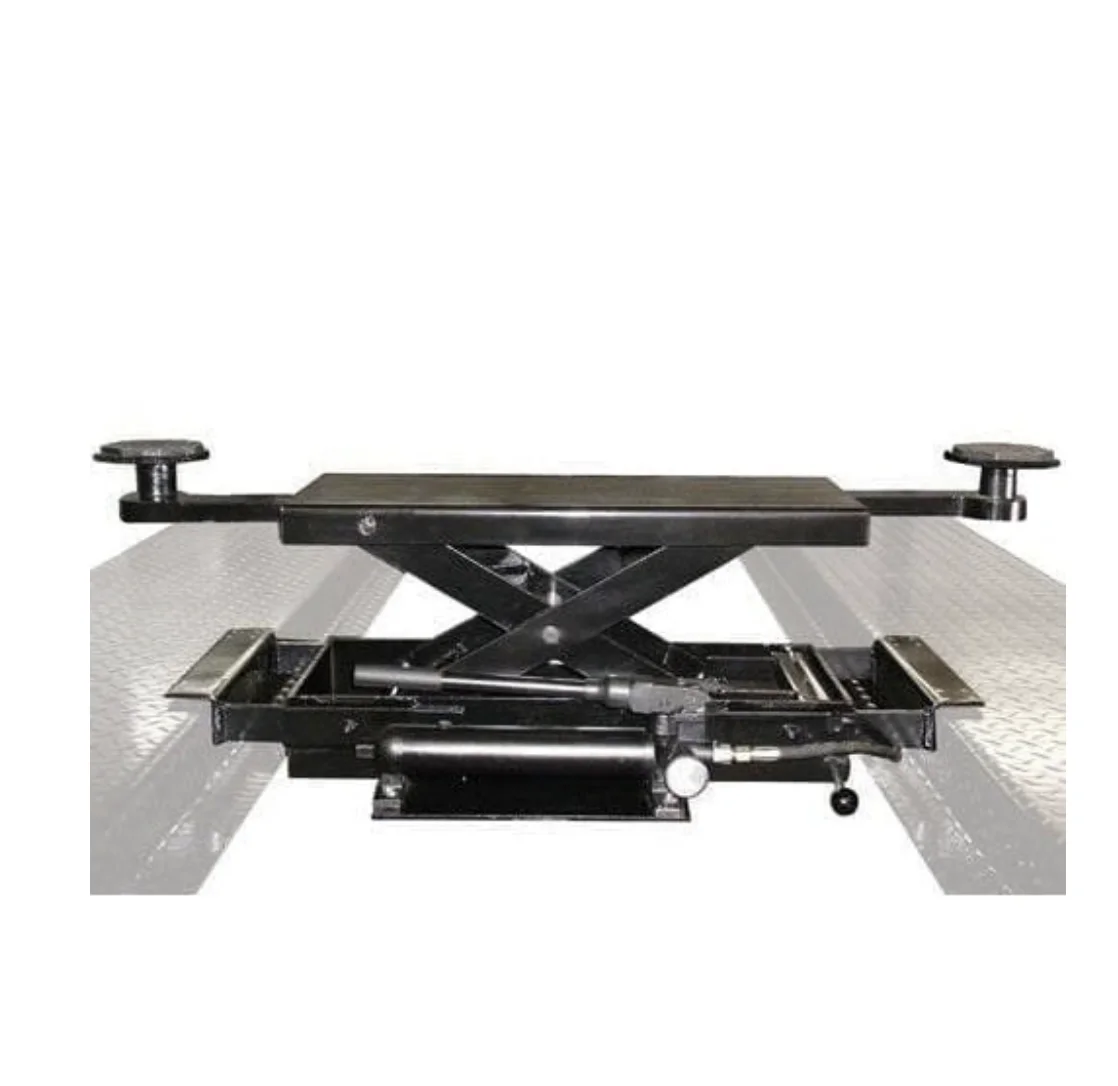

The Atlas® RJ35 Sliding Hydraulic Bridge Jack (3,500 lb. capacity) is a versatile and convenient solution for performing wheel service on vehicles positioned on four-post lifts. It is the ideal companion for the Atlas® Garage PRO8000 and other Atlas® Garage Pro models, as well as the ALI Certified Atlas® APEX8, APEX9, and Premium Atlas® 408SLand 409HP lifts.

Unlike a standard jack tray—which limits access to only the lifting points between the runways—the RJ35 features telescoping arms that extend across the lift runways. The lift pads at the ends of these arms can be positioned directly under a wider range of vehicle lifting points, allowing greater flexibility and safer lifting.

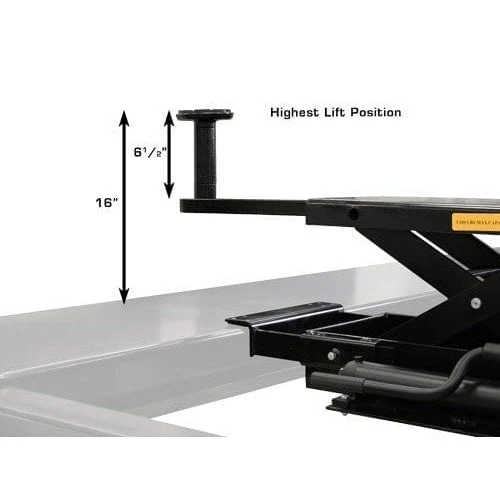

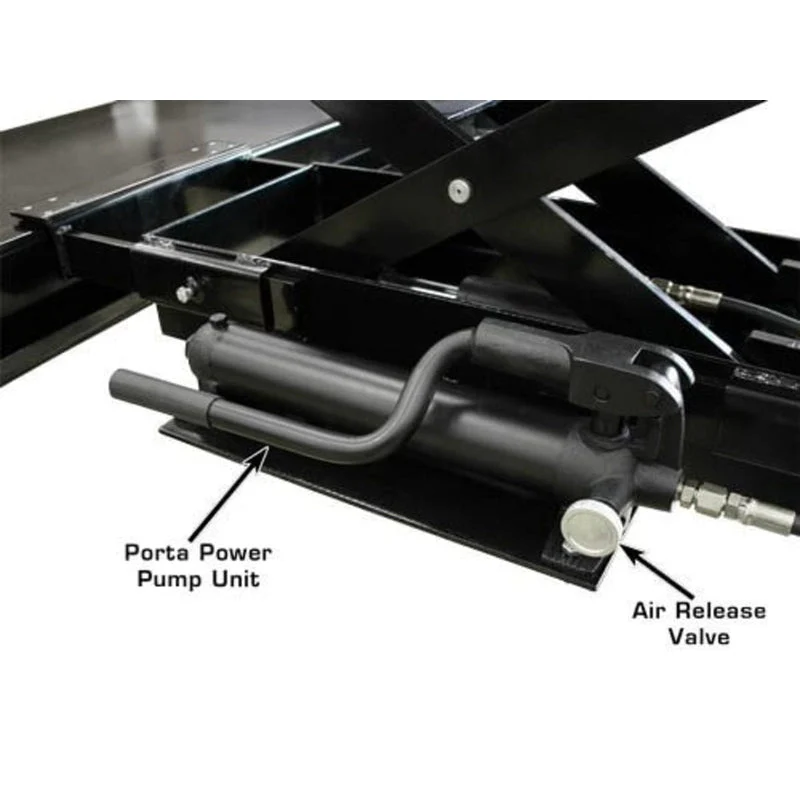

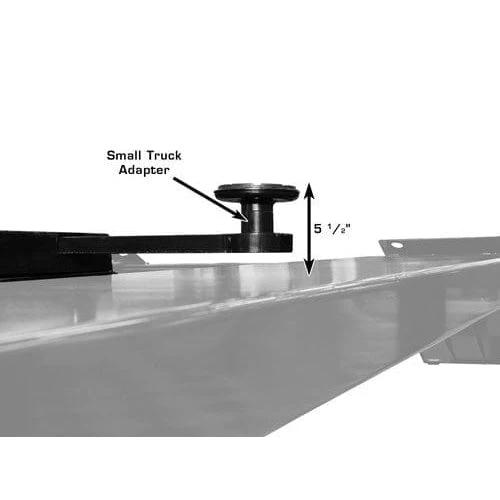

The RJ35 comes equipped with peg-style truck adapters, increasing lift height and enabling it to handle pickup trucks and larger vehicles with higher clearances. Operated by a manual hydraulic hand pump (porta-power pump), this model does not require an air compressor for operation.

For added safety, the RJ35 includes two solid mechanical locking positions that engage once the vehicle is raised, eliminating hydraulic pressure and functioning like jack stands to securely hold the vehicle in position.

Key Features

• Sliding bridge jack for use with four-post lifts

• 3,500 lb. lifting capacity

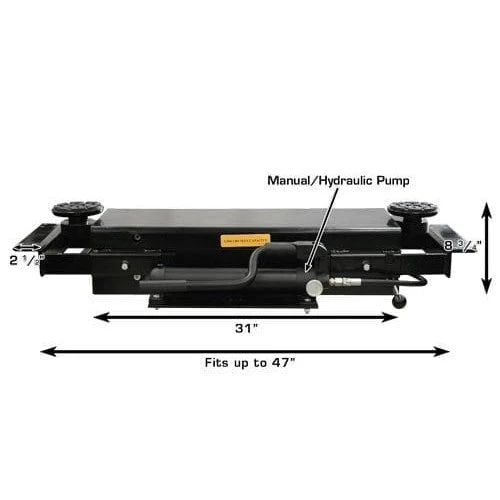

• Manual, hand-pump hydraulic operation (no air required)

• Scissor mechanism for smooth, level lifting

• Low-profile, compact design

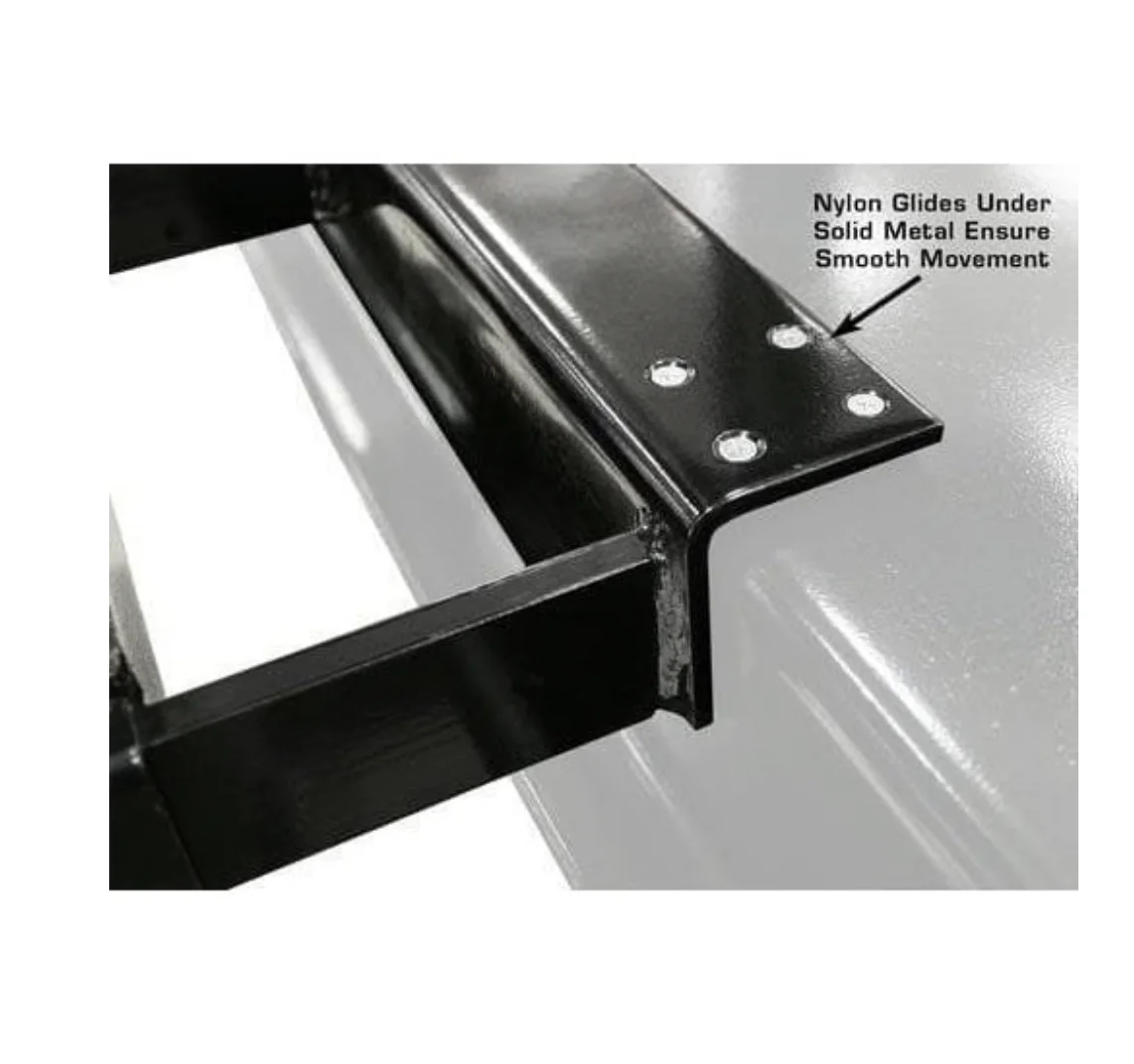

• Adjustable width to fit a variety of four-post lifts

• Adjustable lift arms to reach multiple lifting points

• Multiple safety lock positions for secure operation

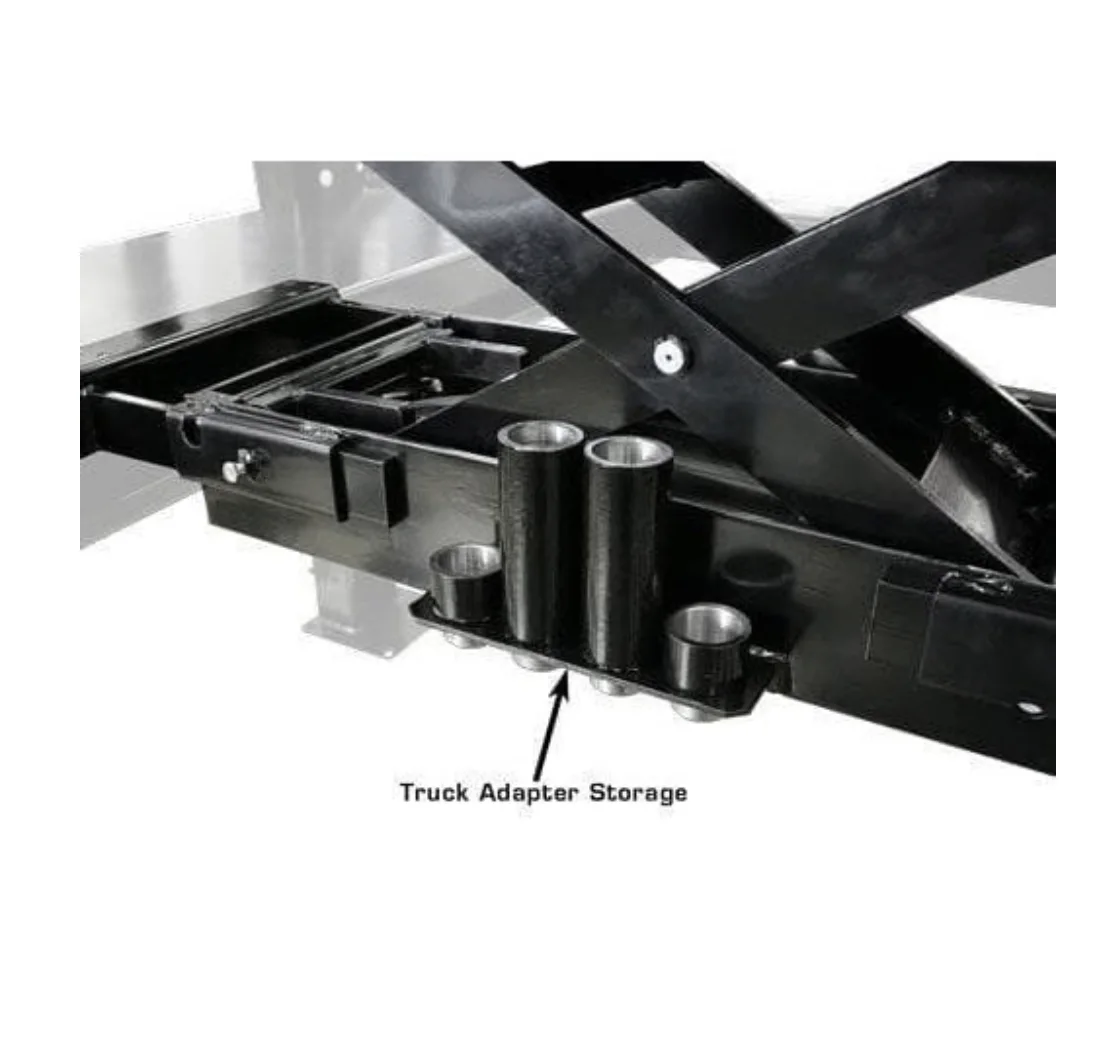

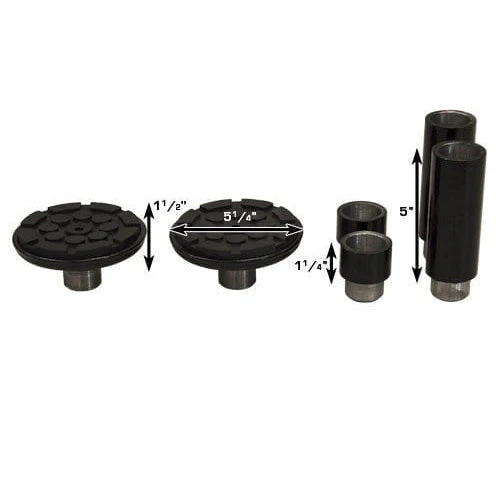

• Includes 4-piece truck adapter set

• 1-Year Parts-Only Warranty

Specifications

SpecificationDetail
