Katool KT-H100 Two-Post Vehicle Lift – 10,000 lbs Capacity

Katool KT-H100 Two-Post Vehicle Lift – 10,000 lbs Capacity

$ 1735

$ 2480

30%

Upgrade Your Garage with the KT-H100 Two-Post Vehicle Lift

Enhance your garage or workshop with the KT-H100 Two-Post Vehicle Lift, a robust and reliable solution engineered to handle vehicles up to 10,000 lbs (4,500 kg). Designed with safety, efficiency, and convenience in mind, this CE-approved lift is perfect for professional mechanics, automotive enthusiasts, and home garage setups.

Why Choose the KT-H100?

  • Heavy-Duty Lifting Capacity: Supports vehicles from compact cars to light trucks, handling up to 10,000 lbs.

  • Certified Safety: Engineered for maximum reliability with 115% dynamic load capacity and 150% static load testing.

  • Symmetric Arm Design: Provides balanced lifting for all vehicle types.

  • Effortless Manual Safety Release: Accessible from both sides for smooth and secure operation.

  • Durable Base Plate Design: Ensures stability and easy installation, even in smaller spaces.

  • High-Performance Dual Hydraulic Chain-Drive Cylinders: Delivers consistent professional-grade lifting power.

Advanced Features for Efficiency

  • Rubber Pad Door Protection: Safeguards vehicle doors during maintenance.

  • Extension Support Adaptors: Includes +30mm and +120mm adaptors to fit vehicles of various heights.

  • Feet-Protection Safety Guardrails: Protects operators while providing a built-in toolbox for convenient tool storage.

  • Top-Tier Hydraulic System: Operates seamlessly with optional 220V or 110V power configurations.

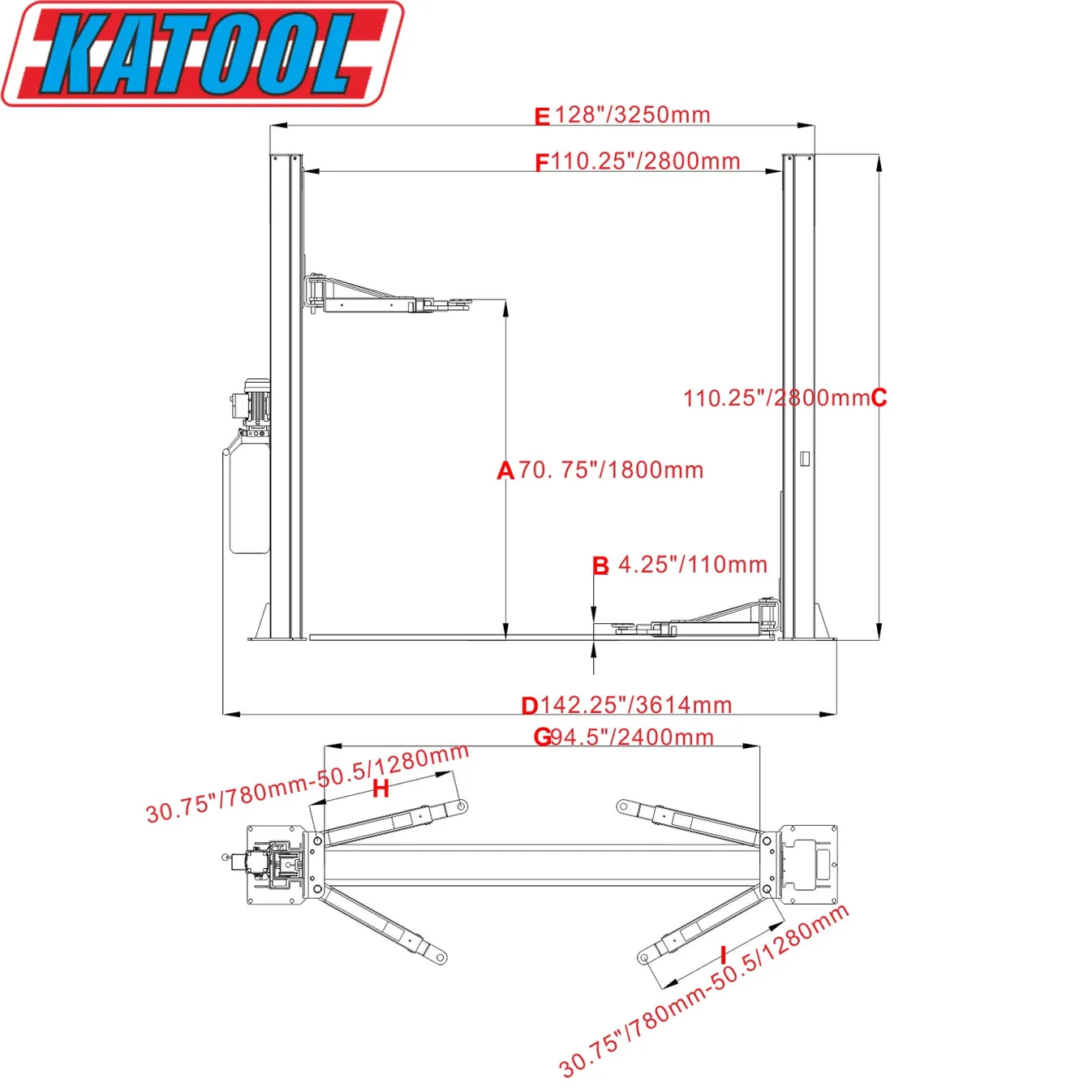

Specifications

  • Lifting Capacity: 10,000 lbs (4,500 kg)

  • Max Lifting Height: 70.75" (1,800 mm)

  • Min Height: 4.25" (110 mm)

  • Overall Height: 110.25" (2,800 mm)

  • Overall Width: 142.25" (3,614 mm)

  • Inside Column Width: 110.25" (2,800 mm)

  • Drive-Thru Clearance: 94.5" (2,400 mm)

  • Front Arm Reach: 30.75"–50.5" (2-stage)

  • Rear Arm Reach: 30.75"–50.5" (2-stage)

  • Motor: 220VAC/60HZ/1PH/2.2KW

  • Net Weight: 1,256 lbs (570 kg)

Installation Requirements

For safe and proper installation, the KT-H100 requires:

  • Concrete Thickness: Minimum 5.9" (150 mm) with a 3,000 PSI rating.

  • Note: Customers must verify their concrete specifications before purchase and installation.
