Trinity MT3 3-Rail Motorcycle Trailer – Load, Transport, and Store with Ease

The Trinity MT3 3-Rail Motorcycle Trailer is the USA Trailer Store’s bestselling motorcycle trailer year after year, offering unmatched versatility, durability, and convenience for riders of all types. Designed to carry one, two, or three motorcycles—or even extra gear and ATVs—this trailer is the ultimate solution for transporting your prized bikes safely and efficiently.

Durable Construction

Weighing just 425 lb, the Trinity MT3 features a powder-coated tubular steel frame and aluminum tread plate deck, providing exceptional strength and rust resistance. This durable combination is engineered to withstand harsh weather conditions and the rigors of the road while supporting a maximum load of 2,000 lb.

Easy Loading

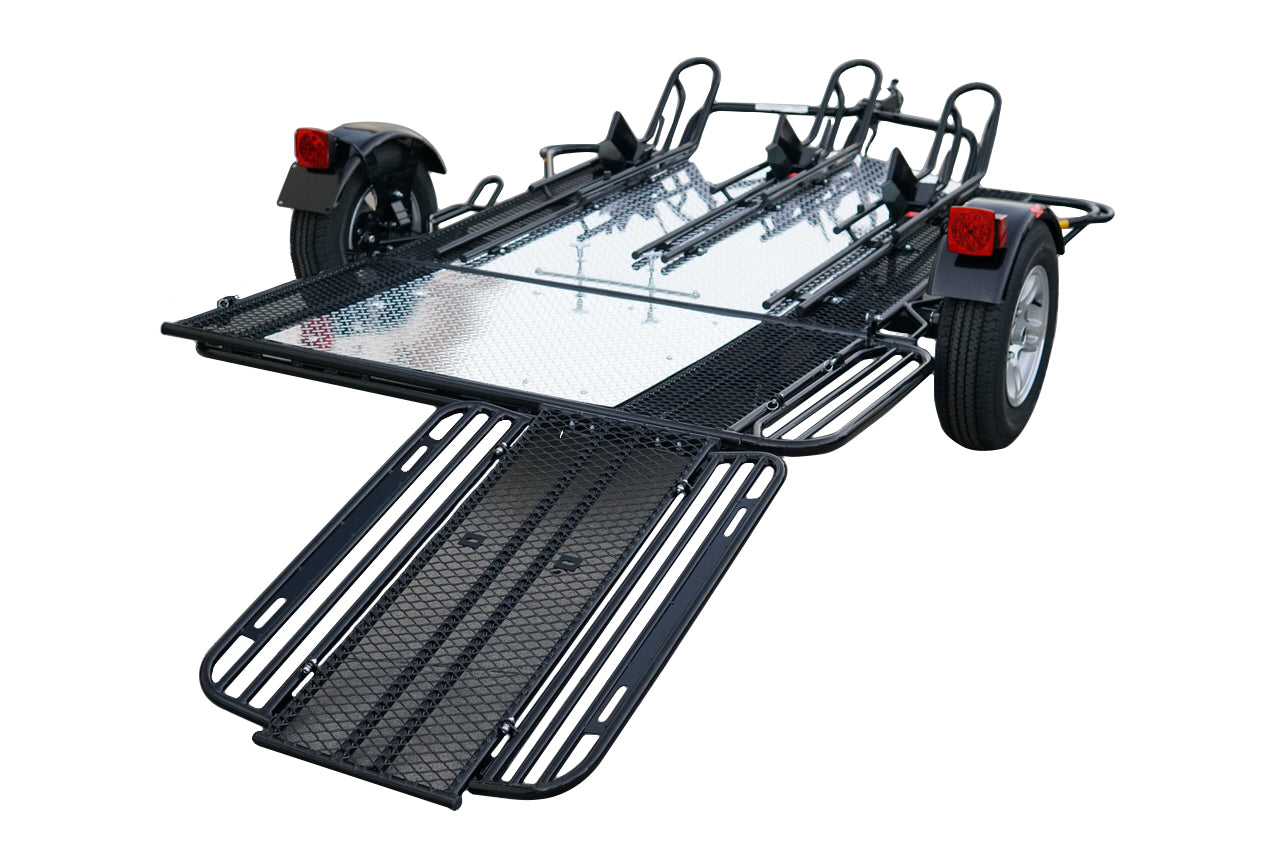

Loading heavy, full-size motorcycles is simple thanks to the integrated ride-up feature. The trailer suspension compresses under the bike’s weight, reducing the ramp-to-trailer apex for smooth loading. The ramp also includes foldout footrails, giving you a wider and safer area to place your feet while riding the bike on or off the trailer.

Smooth Handling

The Trinity MT3 is designed for superior towing stability:

• Torsion axle for a smooth ride

• Two 13-inch aluminum wheels with radial tires provide better traction, lighter weight, and improved stiffness compared to steel wheels

• Stable and responsive handling even when carrying only one motorcycle

• Aluminum wheels and radial tires come standard, unlike many competitors who charge extra

Versatility for All Bikes

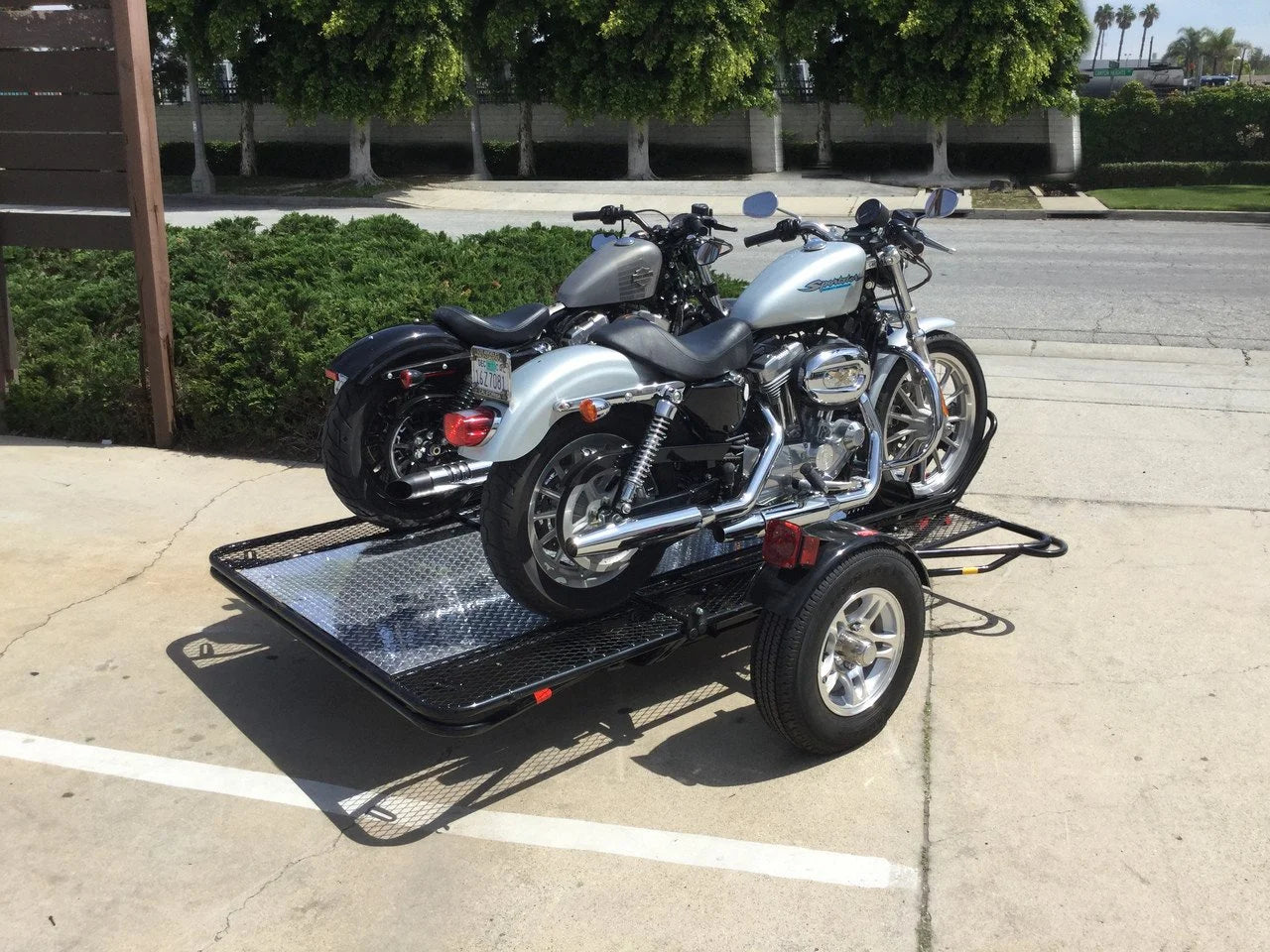

Trinity MT3 can carry a wide range of motorcycles:

• Sport bikes, dirt bikes, cruisers, touring bikes, dual sports, and trikes

• Designed with three integrated chocks and three wide-channel rails

• Rails are detachable and configurable to accommodate different bike combinations or removed entirely to haul ATVs, extra gear, or cargo

• Maximum motorcycle lengths: 96″ on outside rails, 105″ on center rail

Easy Storage

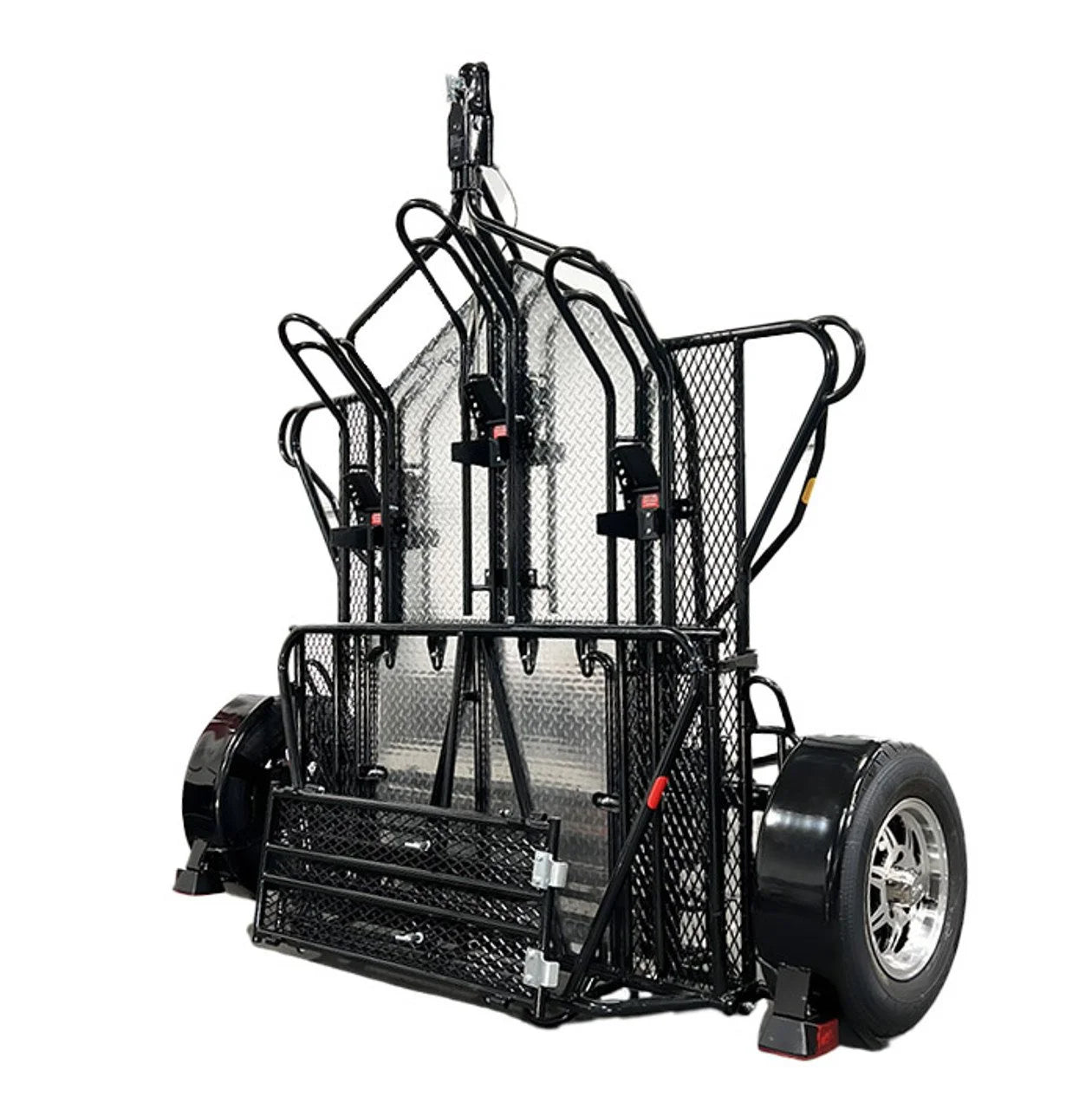

Lightweight construction makes maneuvering and storage simple. After unloading your bikes, fold the tailgate onto the deck, and the trailer can be moved to a compact, out-of-the-way spot. Users of all ages and sizes can handle this trailer with ease.

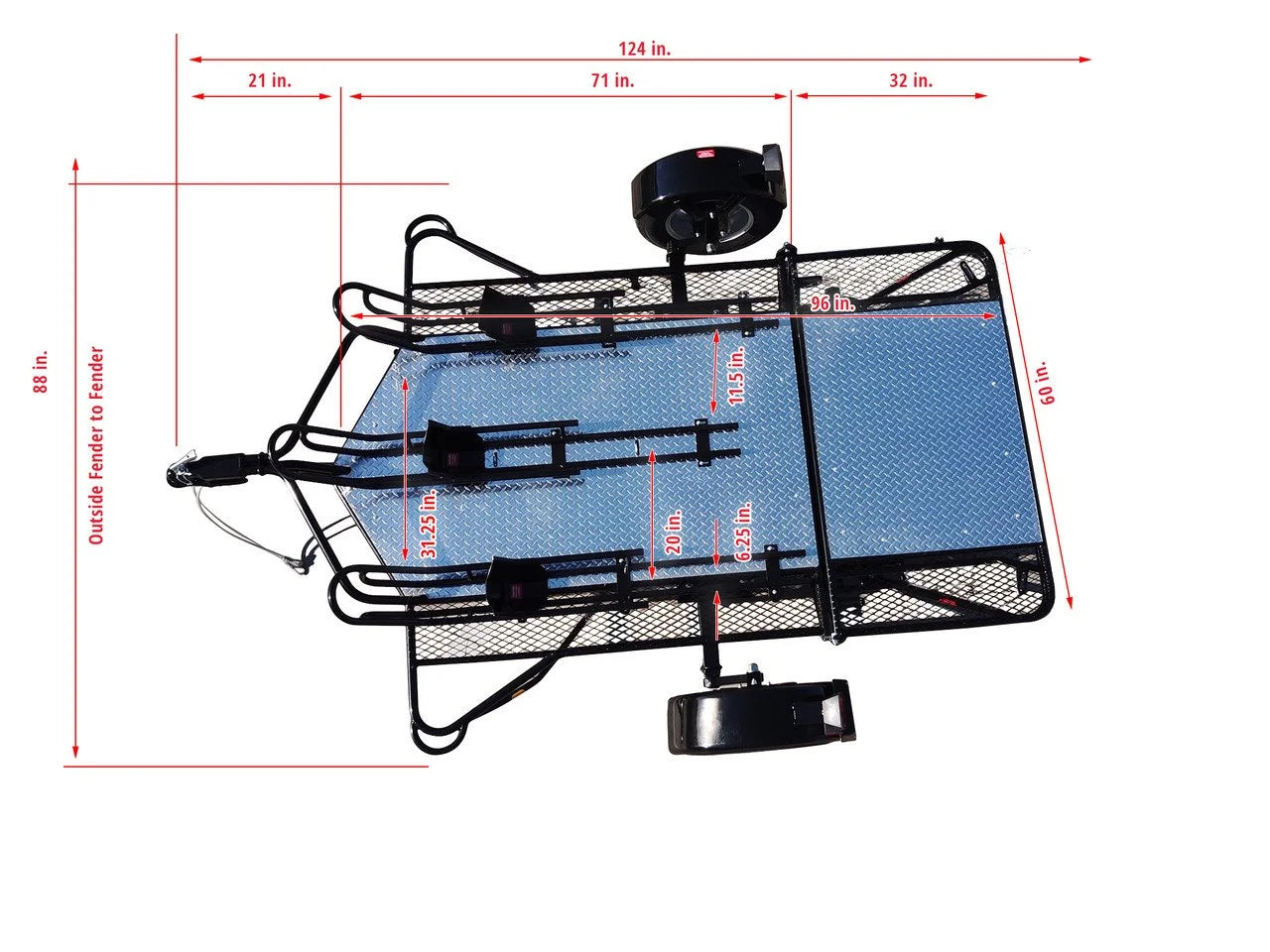

Specifications

• Trailer Deck Dimensions: 5’ x 7’

• Deck Clearance: 13 ¼’’

• Undercarriage Clearance: 7’’

• Center-to-Center Rail Distance: 20’’

• Tailgate Length: 32’’

• Folded Length: 92’’

• Maximum Overall Width: 88’’

• Maximum Extended Length: 124’’

• Maximum Motorcycle Length (Outside Rail): 96’’

• Maximum Motorcycle Length (Center Rail): 105’’

• Tires: ST175/80 R13, 13’’ Chrome wheels, 50 PSI cold

• Empty Weight: 425 lb

• Maximum Load Capacity: 2,000 lb

• Hitch: Class 2 or higher

• Hitch Height: 21–22’’

• Ball Size: 2’’

• Suspension: Torsion Axle

• Frame Material: Tubular Steel

• Deck Covering: Diamond Tread Plate

• Finish: Powder-Coated

• Distance Between Fenders: 88’’ (outside), 71.5’’ (inside)

Warranty

• 1-year limited warranty
